Design Your Own Stackable Storage

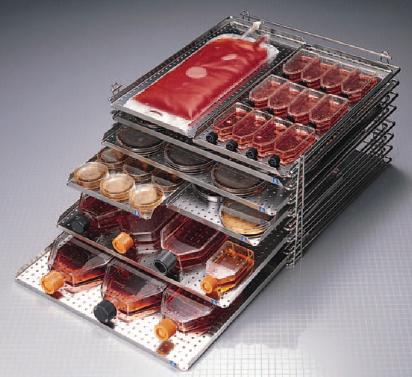

Modular rack and tray system maximizes storage of Petri dishes and cell culture flasks in incubators, cold rooms or the bench. Choose from two types of racks; one supports three levels of trays to hold taller items such as tissue culture flasks, the other supports five levels of trays to hold shorter items such as dishes and plates.
Racks interlock when stacked creating a compact footprint with up to 20 levels of trays. Each level will hold one large or two small interchangeable trays, sold separately. Trays are perforated for airflow and all parts are made of stainless steel,
autoclavable at 121ºC (250ºF).Rack overall dimension: 37.5 x 10.8 x 35.8cm H (143⁄4 x 41⁄4 x 141⁄16"H). Large tray:
35.6 x 35.6 cm (14 x 14"), small tray: 17.8 x 35.6 cm (7 x 14"). Racks and trays sold separately.

CATALOG NO.                  DESCRIPTION

H18610-0420                   Three level rack (for taller culture flasks),clearance between trays 5cm (2").

H18610-0440                   Five level rack (for Petri dishes and shorter culture flasks),clearance between trays 2.4cm (1").

H18610-0470                   Small tray, 17.8 x 35.6cm (7 x 14")

H18610-1440                   Large tray, 35.6 x 35.6cm (14 x 14")

Stack-a-Tray™ System, Storage Capacity

ITEM SIZE                      LARGE TRAY HOLDS                     SMALL TRAY HOLDS

35 x 100mm dish                                  64                                                 32
5 x 12mm dish                                       36                                                 18
60 x 12mm plastic dish                       36                                                  17
60 x 15mm glass dish                         25                                                  12
100 x 10mm dish                                  13                                                   6
100 x 15mm dish                                  13                                                   6
100 x 20mm dish                                  13                                                   6
150 x 20mm dish                                  4                                                     2
150 x 25mm dish                                  4                                                     2
125 x 15mm square                             4                                                     2
